Williams Controls

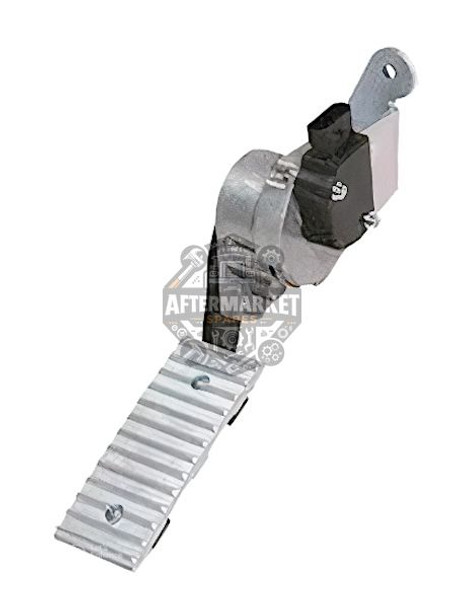

HD Suspended WCS Pedal - Cummins PRE 07

Write a Review
SKU:
J-WCS-131507-HD
Shipping:
Calculated at Checkout
  • HD Suspended WCS Pedal - Cummins
  • HD Suspended WCS Pedal - Cummins data

Expected release date is 10th Aug 2025

$495.83
Frequently bought together:

Description

This pedal offers a direct Heavy-Duty replacement for WILLIAMS Pedal Part Number WCS-131507, model WM-540. Used with pre 2007 Cummins engine applications. This suspended electronic throttle is designed with a combination of non-contact Hall and resistive sensor technologies, offering both longevity and precision.
Due to superior IP66 and IP67 ratings, this pedal offers protection against harsh environmental elements. It comfortably operates within a wide temperature spectrum. It meets stringent standards of FMVSS124 and Cummins AEB series. This throttle pedal stands as a testament to reliability and performance. Ideally crafted for heavy-duty automotive, industrial, and marine applications demanding endurance and accuracy.

Features:

  • Travel: 20°
  • Output Type - Single Analog Signal with IVS (Idle Validation Switch)
  • Used with pre 2007 Cummins engine applications
  • Resistance: 2.74 K Ω, 5.225 KΩ, others on request
  • Working Voltage: 5V
  • Linearity: 2%
  • Current: 10mA
  • Protection: IP66, IP67
  • Life Cycle: 10,000,000 (Hall) , 3,000,000 (Resistive)
  • Operating Temp: -40°c to 85°C
  • Standards Met: FMVSS124, Cummins AEB 15.67, Cummins AEB 15.59

‍Need Help? Simply click here to send an email with your details for a quick response from our sales team. NOTE: All Shipping via EXPRESS Post. * For sales outside Australia, please use same email link to arrange your order.
