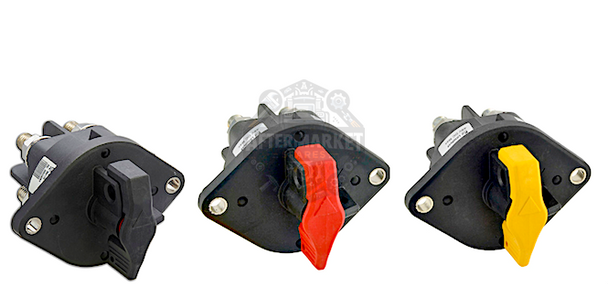

TR Series Master Battery Switch

The J-880175 TR Series Master Disconnect Switch cuts all battery power from vehicle electrical systems with applications needing switching of two circuits. The dual-pole, single-throw (DPST) can be used to switch two vehicle voltage circuits simultaneously (24V & 12V). Disconnect a battery or multiple batteries, in either the positive or the negative line.

• Cranking Rating (30 sec): 2,25 per circuit with 2 x 4/0 input and 2 x 4/0 output cables | 0A 1,750A per circuit with 1 x 4/0 input and 1 x 4/0 output cables
• Hardware: Stainless Steel Nuts (Included)
• Ingress Protection Rating: IP67/ IP69K.
• Inrush Rating 1 sec: 3,000A per circuit with 2 x 4/0 + 1 x 2 AWG.
• Max Continuous Current Ratings: 5 per circuit with 2 x 4/0 input with 2 x 4/0 output cables | 00A 350A per circuit with 1 x 4/0 input and 1 x 4/0 output cables
• Recommended Terminal Torque: 20 Nm (30Nm max)
• Recommended Mounting Torque: 15Nm (20Nm max)
• Temperature Rating: -50 °C to +85 °C, DC rated to 105 °C.-R
• Terminal Studs: Tin-plated copper
• Terminal Stud Size: M12 x 25mm
• Voltage: VDC 48

IMPORTANT: Ambient temperature can reach 105 °C with appropriate rating. Stud terminals must never exceed 125 °C under any condition. Need Help? Simply click here to send an email with your details for a quick response from our sales team. NOTE: All Shipping via EXPRESS Post. For sales outside Australia, please use same email link to arrange your order.
